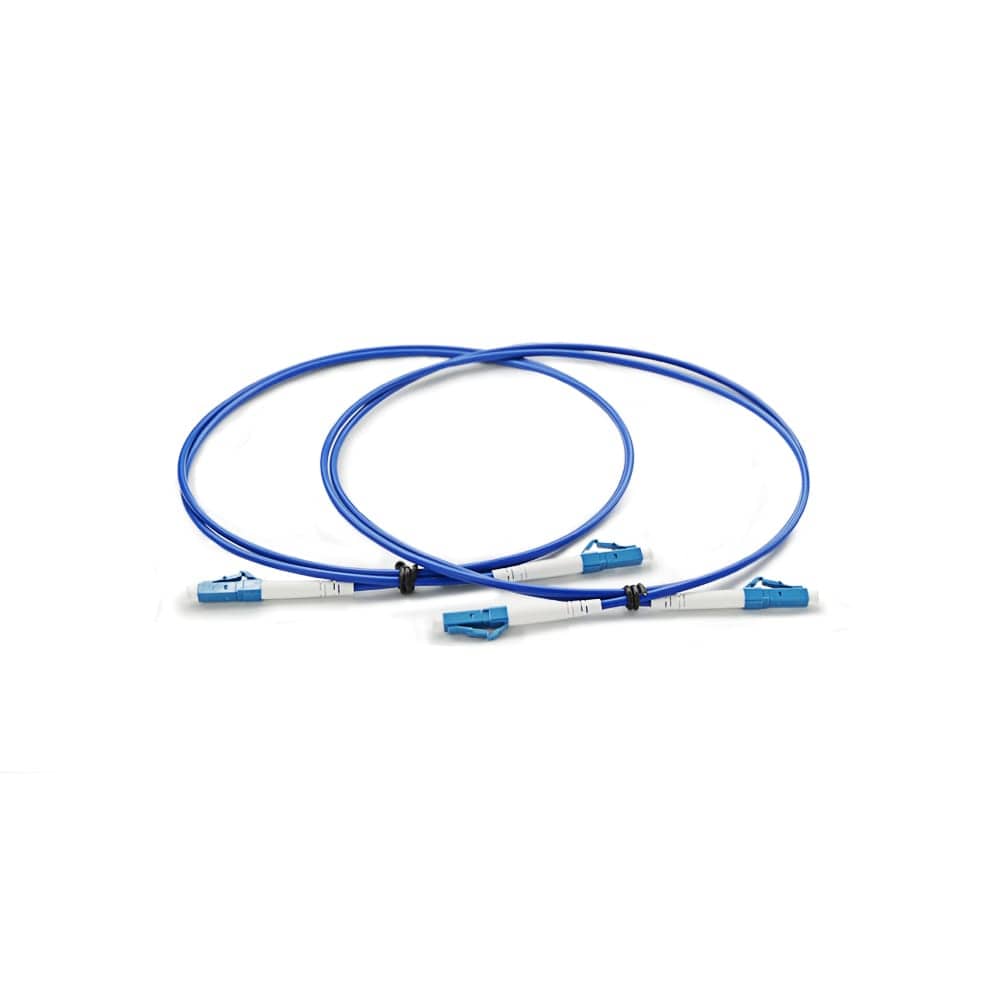

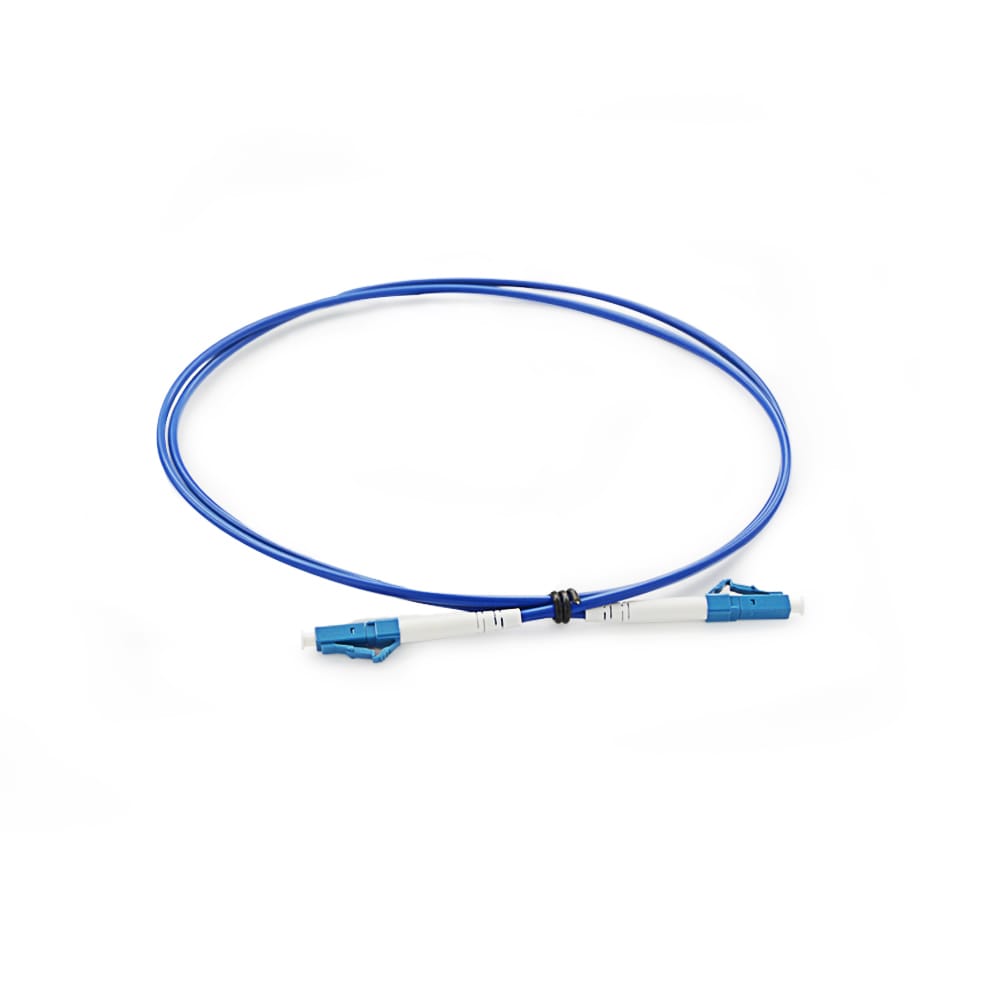

LC LC Armored Patch Cord
LC LC Armored Patch Cord feature a specialized jacketing that increases the durability of fiber cables by up to 10x, yet retains full cable flexibility. Each fiber patch cable is available with various popular connectors such as the LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST adapters.
| Specifications | SC,LC,FC,E2000 | ST,MU | MTRJ | ||||
| SM | MM | SM | MM | SM | MM | ||
| UPC | APC | UPC | UPC | UPC | UPC | UPC | |
| Work Wavelength (nm) | 1310,1490,1550 | 850,1300 | 1310, 1490,1550 | 850,1300 | 1310,1490,1550 | 850,1300 | |
| Insertion Loss(dB) | ≤0.25 | ≤0.20 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Return Loss(dB) | ≥55 | ≥65 | ≥35 | ≥50 | ≥35 | ≥50 | ≥35 |
| Repeatability(dB) | ≤0.10 | ||||||
| interchangeability(dB) | ≤0.20 | ||||||
| Plug Testing(time) | ≥1000 | ||||||
| Tensile Strength(N) | 0.9mm(9N);2.0mm(70N);3.0mm(75N) | ||||||
| Durability(dB) | ≤0.20 | ||||||
| Operation Temperature(°C) | -40~+75 | ||||||
| Storage Termperature(°C) | -40~+85 |
