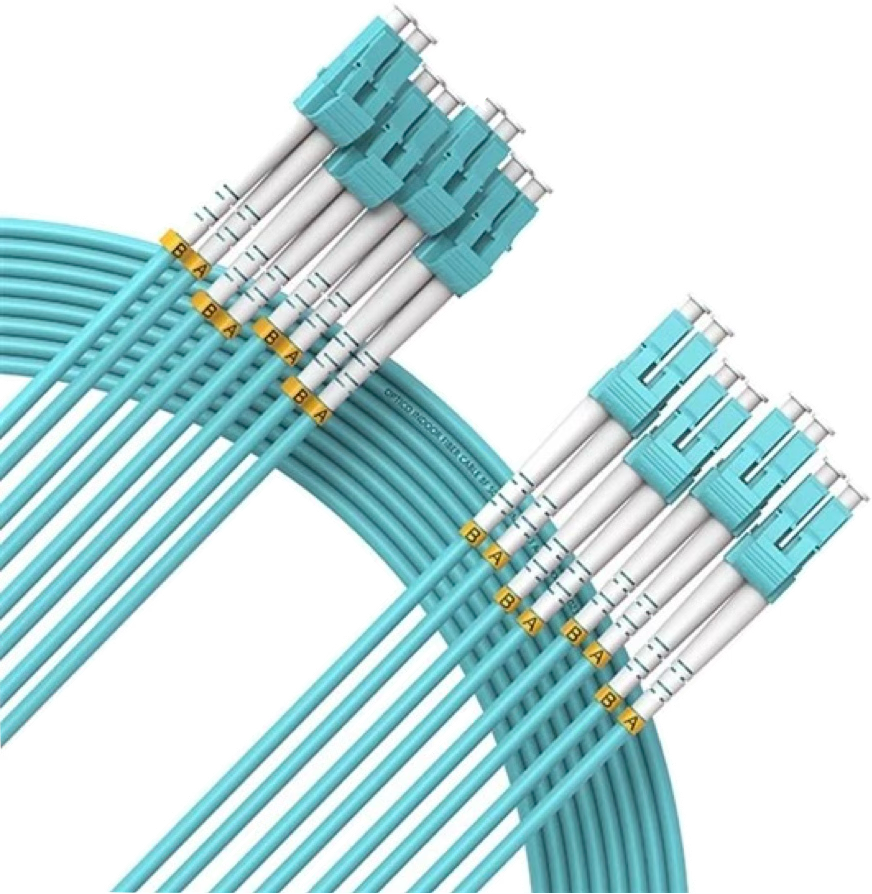

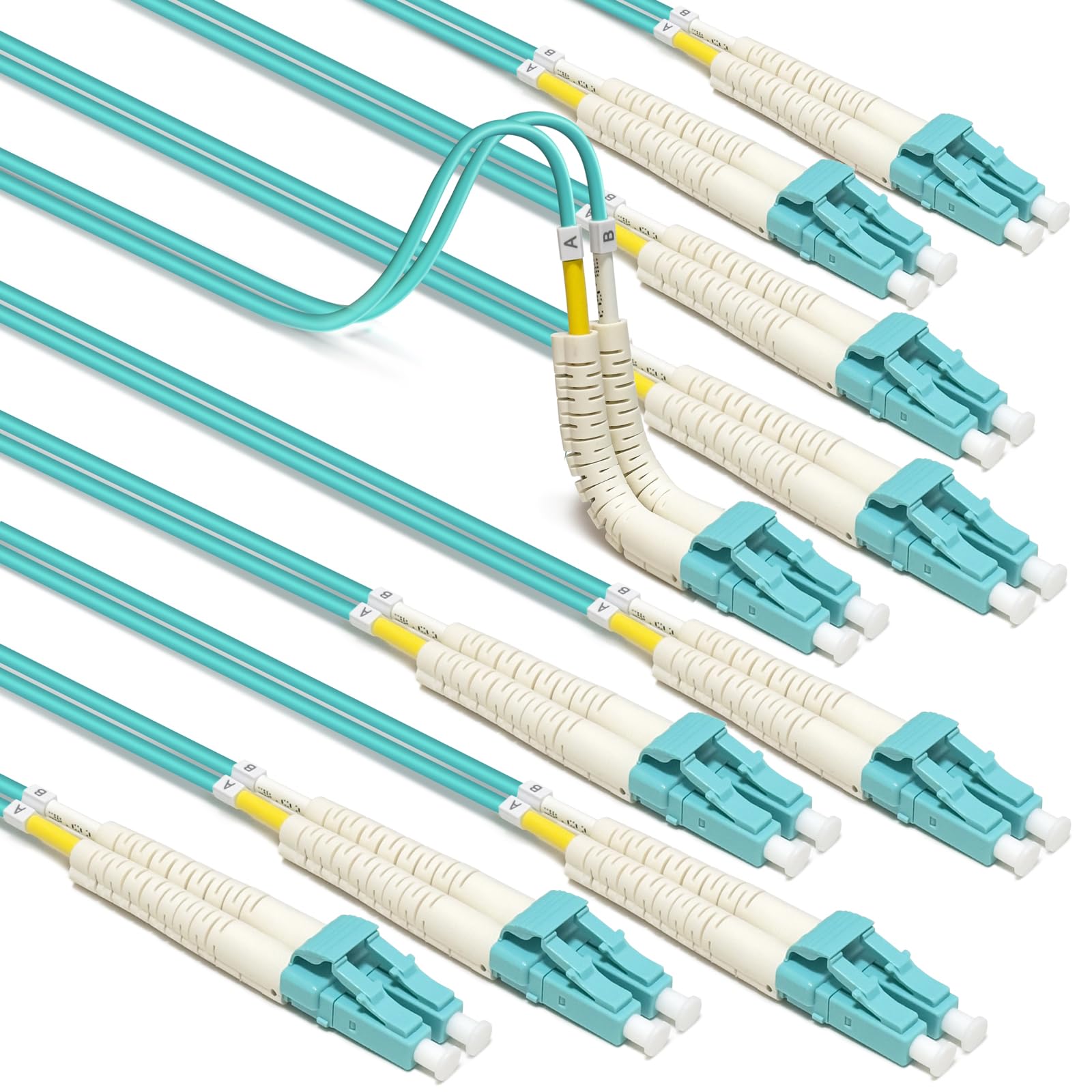

The 8LC to 8LC Duplex Patch Cord by A&T is a highly efficient fiber optic solution that offers the convenience of 8 LC patch cords bundled together. Designed to deliver exceptional performance and reliability, these LC patch cords are optimized for high return loss and low insertion loss, ensuring seamless data transmission across your network.
| Item | SC,LC,FC,E2000 | ST,MU | MTRJ | ||||
| SM | MM | SM | MM | SM | MM | ||
| UPC | APC | UPC | UPC | UPC | UPC | UPC | |
| Work Wavelength (nm) | 1310,1490,1550 | 850,1300 | 1310, 1490,1550 | 850,1300 | 1310,1490,1550 | 850,1300 | |
| Insertion Loss(dB) | ≤0.25 | ≤0.20 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Return Loss(dB) | ≥55 | ≥65 | ≥35 | ≥50 | ≥35 | ≥50 | ≥35 |
| Repeatability(dB) | ≤0.10 | ||||||
| interchangeability(dB) | ≤0.20 | ||||||
| Plug Testing(time) | ≥1000 | ||||||
| Tensile Strength(N) | 0.9mm(9N);2.0mm(70N);3.0mm(75N) | ||||||
| Durability(dB) | ≤0.20 | ||||||
| Operation Temperature(°C) | -40~+75 | ||||||
| Storage Termperature(°C) | -40~+85 |
Remarkable Tensile Strength: The patch cord's thick fire-resistant coating ensures superior tensile strength, making it highly durable and capable of withstanding demanding environmental conditions.
Reliable Repeatability and Interchangeability: With repeatability of ≤0.10dB and interchangeability of ≤0.20dB, this 8LC 8LC Duplex Patch Cord offers consistent and reliable connectivity during multiple mating cycles.
Extended Plug Testing: The 8LC 8LC Duplex Patch Cord is built to last, undergoing
rigorous plug testing of ≥1000 times to ensure prolonged and stable performance.
Wide Operating Temperature Range: Adaptability is a strength of this patch cord, as it operates flawlessly in temperatures ranging from -40°C to +85°C, providing reliable connectivity in varying environments.
