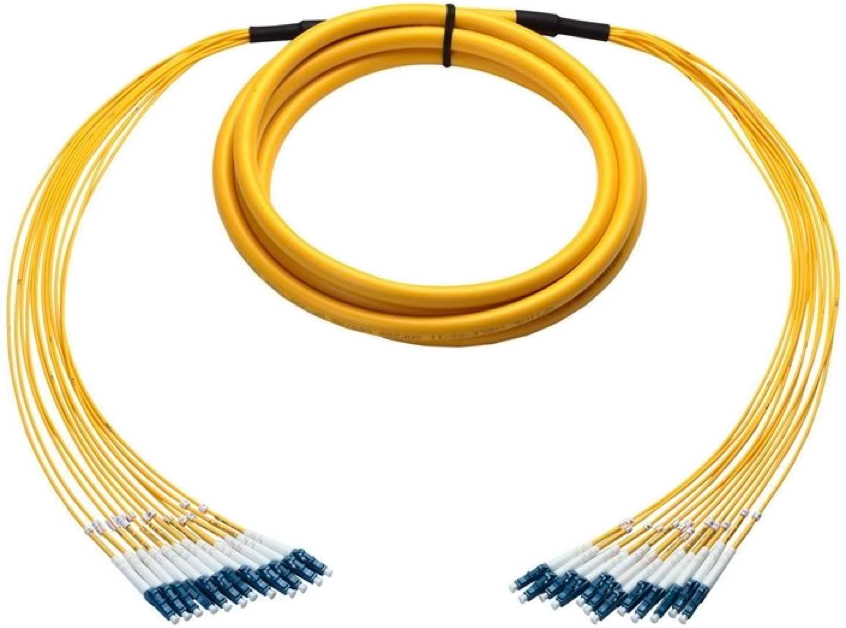

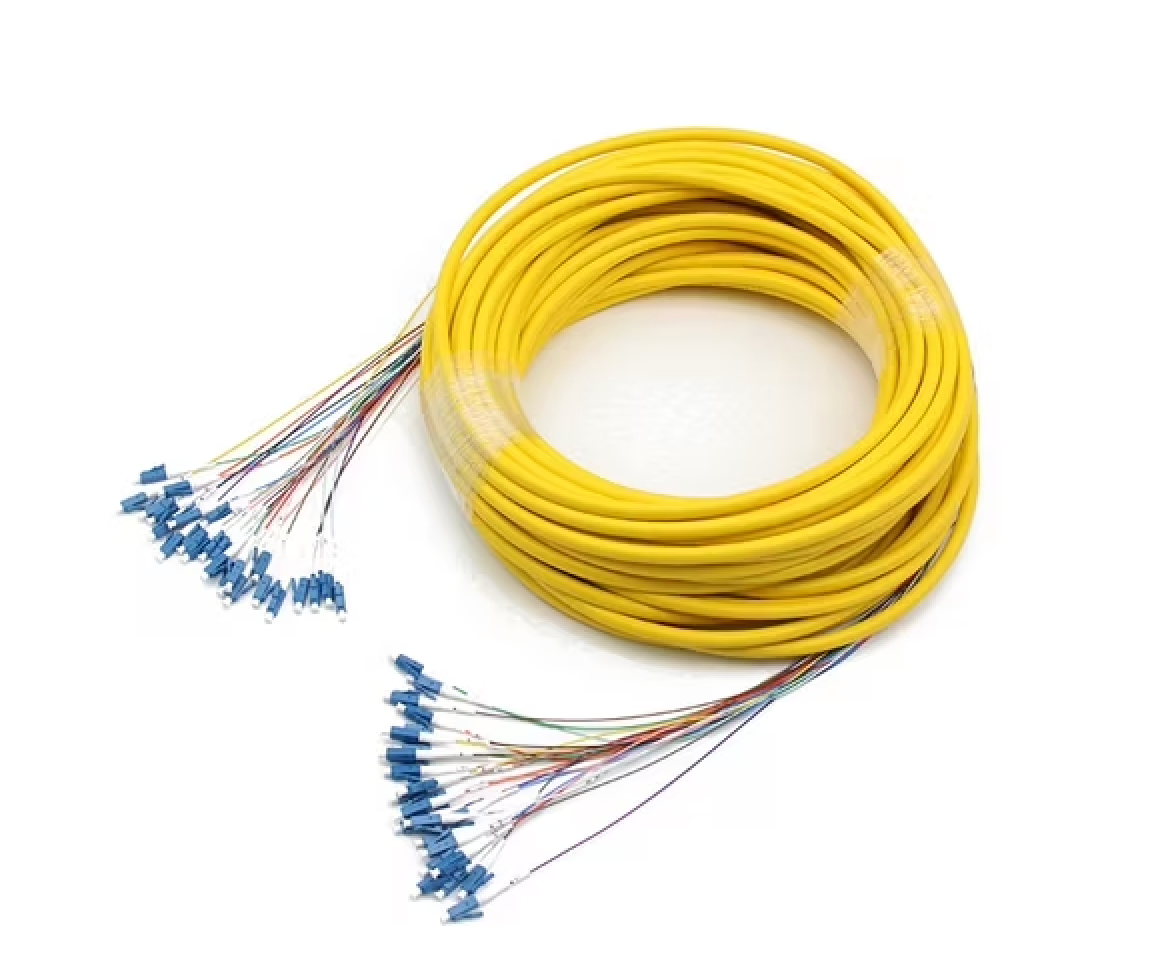

48F LC To LC Single Mode Fiber Optic Patch Cord is double-tested and 3D end-face inspected at the factory and obtained Reach, CPR, RoHS, ISO 9001, and COC certificates. It is a high-performance fiber optic cable for data centers.
48F LC To LC Single Mode Fiber Optic Patch Cord is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers, and other 10G/40G/100G Ethernet connections. It is the preferred fiber optic specification for 10G Ethernet connections.
| Color | Yellow/Orange/Aqua/Pink/Purple /Custom | Yellow/Orange/Aqua/Pink/Purple /Custom |
| Connector Type | LC/SC/FC/ST/MPO/MTP | LC/SC/FC/ST/MPO/MTP |
| Specifications | Single Mode | Multi Mode |
| Work Wavelength (nm) | 1310,1490,1550 | 850,1300 |
| Insertion Loss(dB) | ≤0.3 | ≤0.25 |
| Return Loss(dB) | APC≥60, UPC≥55 | ≥35 |
| Cable OD (mm) | 0.9 / 2.0 / 3.0 | 0.9 / 2.0 / 3.0 |
| Repeatability(dB) | ≤0.10 | ≤0.10 |
| interchangeability(dB) | ≤0.20 | ≤0.20 |
| Plug Testing(time) | ≥1000 | ≥1000 |
| Tensile Strength(N) | 0.9mm(9N);2.0mm(70N);3.0mm(75N) | 0.9mm(9N);2.0mm(70N);3.0mm(75N) |
| Durability(dB) | ≤0.20 | ≤0.20 |
| Operation Temperature(°C) | -40~+85 | -40~+85 |
| Storage Temperature(°C) | -40~+85 | -40~+85 |
The IL (insertion loss) of 48F LC To LC Single Mode Fiber Optic Patch Cord is ≤0.3dB, which ensures that your data signal remains strong and stable even in long-distance transmission.
The RL (return loss) of 48F LC To LC Single Mode Fiber Optic Patch Cord is APC≥60dB, UPC≥55dB, which minimizes signal reflections, improves overall signal quality, and reduces the risk of data errors or losses.
48F LC To LC Single Mode Fiber Optic Patch Cord has a wavelength of 1310/1490/1550 nm and is designed for high-density applications in Gigabit Ethernet, Fiber Channels, LAN, data centers, home offices, and other places of installation, WAN, and commercial environments.
48F LC To LC Single Mode Fiber Optic Patch Cord has passed the continuity and stability test of the third-party authority, including mechanical and environmental performance tests, to serve customers with excellent quality.
48F LC To LC Single Mode Fiber Optic Patch Cord is equipped with adjustable clips and removable dust caps, which can provide effective protection for the optical fiber and make single-fiber access easier.
