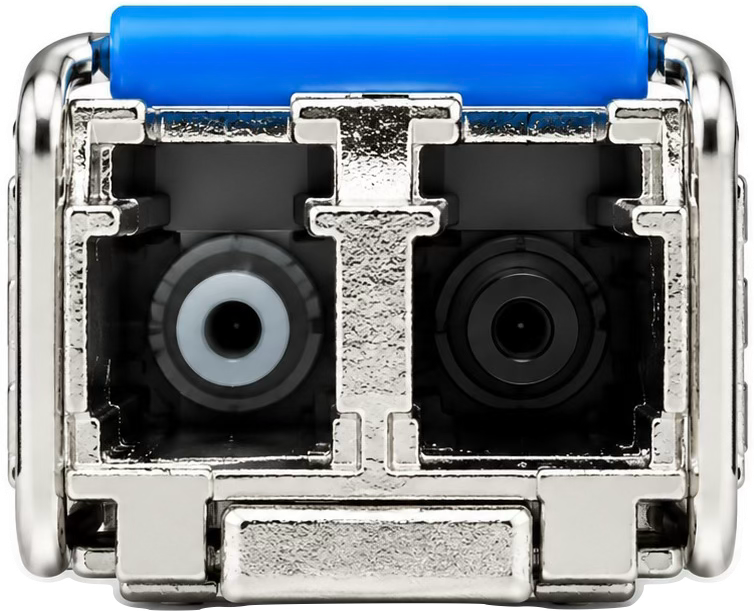

1.25G Duplex SM SFP Transceiver Module 20Km

• Up to 1.25Gb/s data links
• Duplex LC connector
• Hot-pluggable SFP footprint
• 1350nm FP laser transmitter
• RoHS compliant and Lead Free
• Up to 20km on 9/125um SMF
• Metal enclosure for lower EMI
• Single +3.3V power supply
• Low power dissipation <800mW
• Commercial and industrial operating temperature optional
• SFP MSA SFF-8074i Compliant

Applications:

• Gigabit Ethernet
• 1x Fibre Channel

Product Description:

SFP 1.25G 1310nm 20KM Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.063Gbps and 20Km transmission distance with SMF. They are RoHS compliant and lead-free

Product Selection:

Product Selection:

• ESD to the Electrical PINs: compatible with MIL-STD-883 Method 3015
• ESD to the Duplex LC Receptacle: compatible with IEC 61000-4-2
• Immunity compatible with IEC 61000-4-3
• EMI compatible with FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B
• Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC) 60825-1,2
• RoHs compliant with 2002/95/EC 4.1&4.2 2005/747/EC
