This SFP media converters are designed to transmit and receive 10/100 /1000Mbps data over single mode optical fiber. The electrical interface will Auto-Negotiate to a 10 Mbps, 100 Mbps ,1000MEthernet rate without any adjustments. The optical interface operates at a 1000Mbps Ethernet rate. LED indicators are provided for rapidly ascertaining equipment operating status.

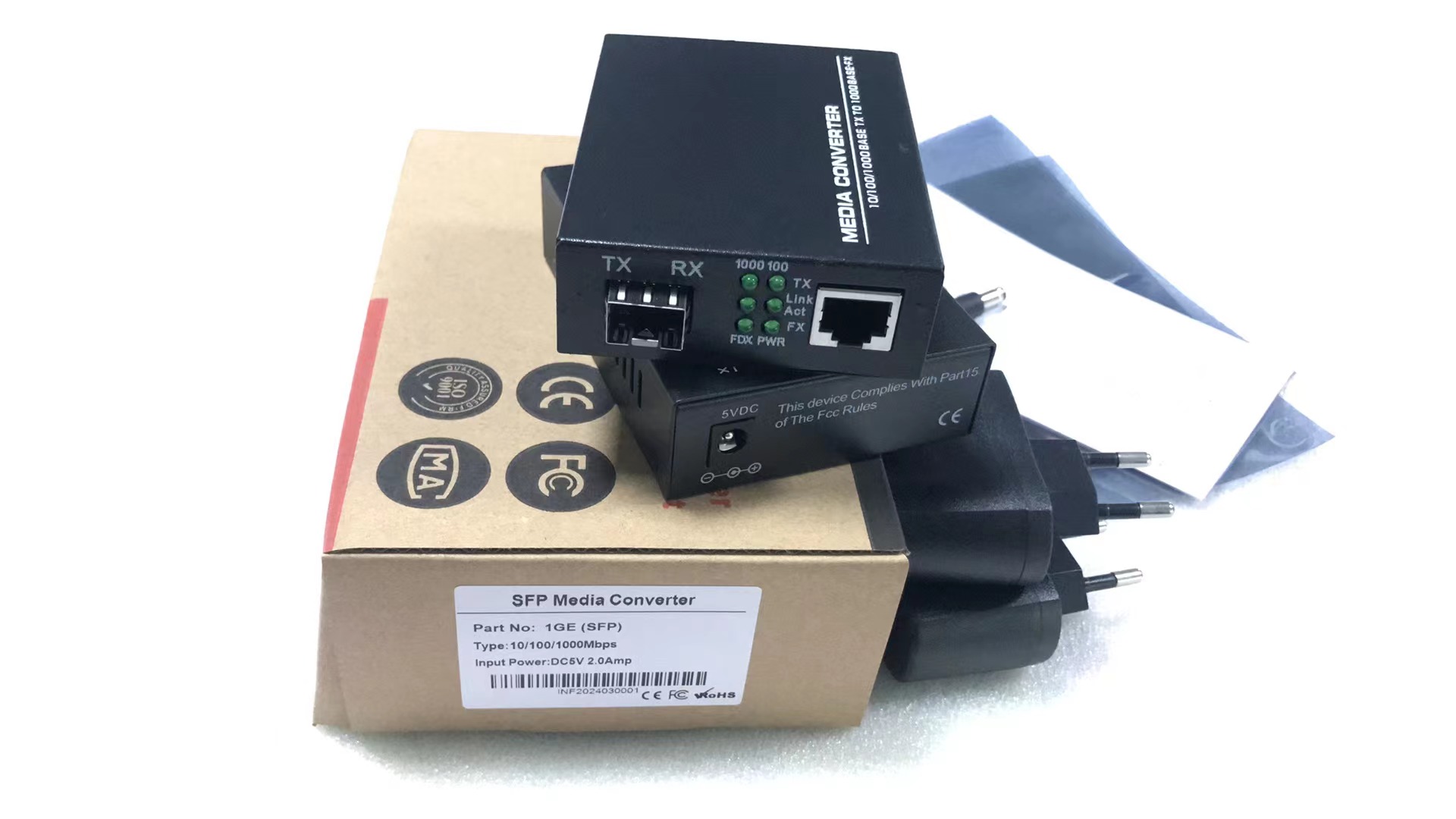

Product Name: SFP media converter
Rate: 10/100/1000MHz
Fiber Port: SFP Port
Electric Port: 1*10/100/1000MRJ45 port, 1*1000M SFP Port
Product Size: 11cm*7cm*2.5cm
Wavelength: Single Mode: 1310nm,1550nm

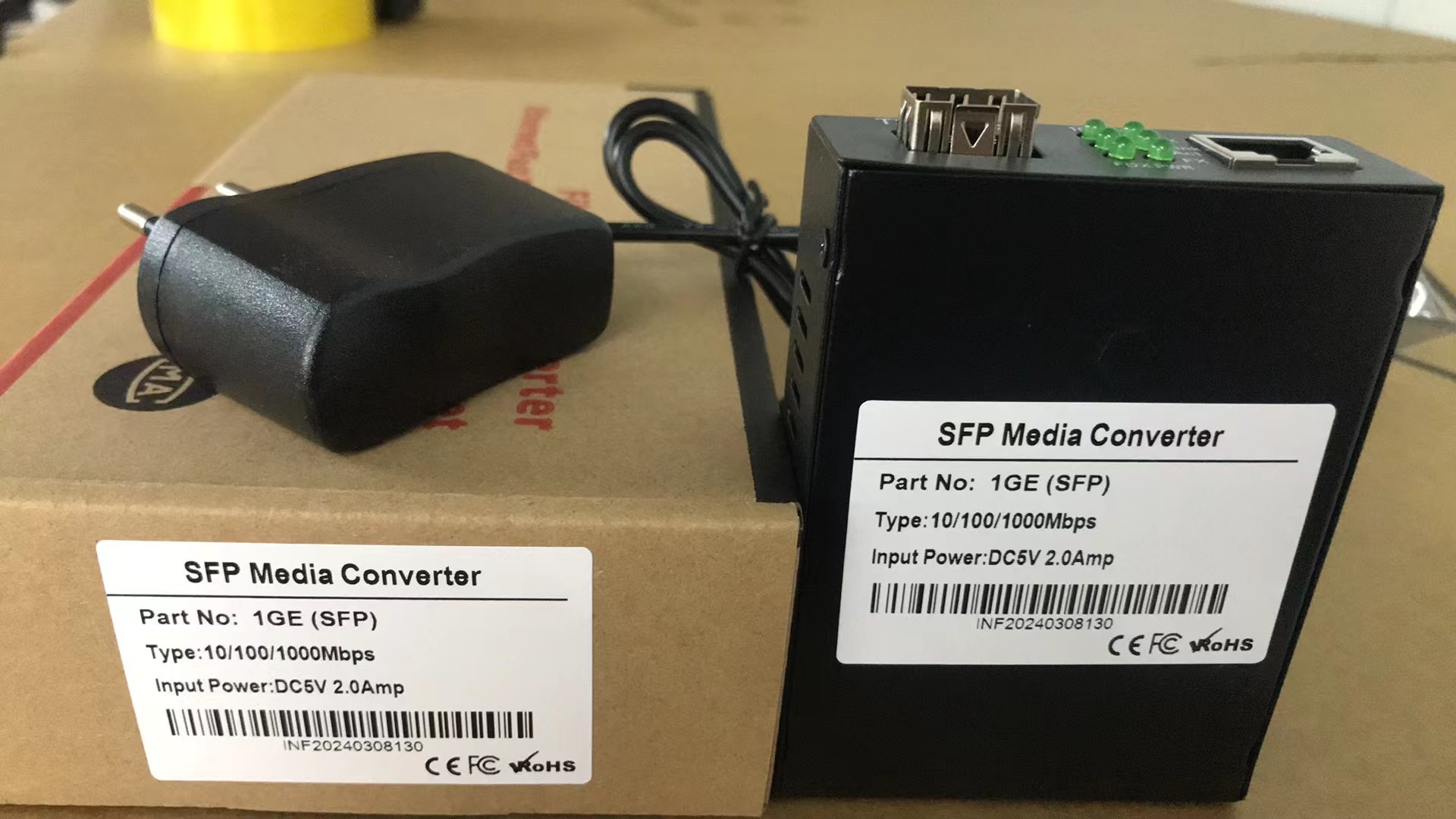

Power supply: DC5V2A
Transmission Distance: Depends on SFP module
Certificates: ISO, CE, RoHs
This SFP media converters are designed to transmit and receive 10/100 /1000Mbps data over single mode optical fiber. The electrical interface will Auto-Negotiate to a 10 Mbps, 100 Mbps ,1000MEthernet rate without any adjustments. The optical interface operates at a 1000Mbps Ethernet rate. LED indicators are provided for rapidly ascertaining equipment operating status.
| Product Name | 10/100/1000M SFP port Fiber Media Converter |
|---|---|
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.1af DTE Power via MDI |
| Wavelength | Single Mode: 1310nm,1550nm |

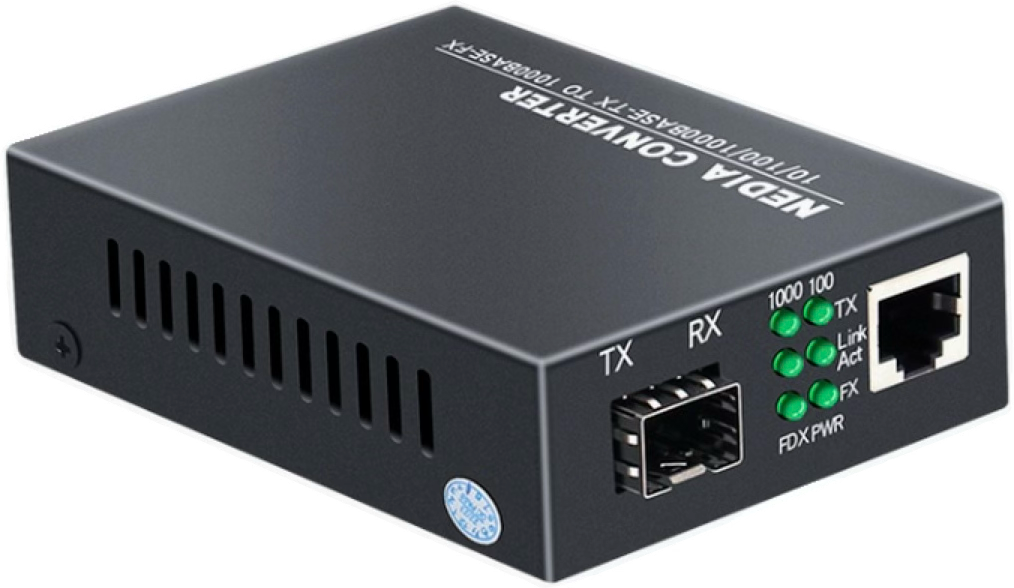

| Port | One RJ45 port, One SFP port |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) |
| Forward Mode | Store and forward |

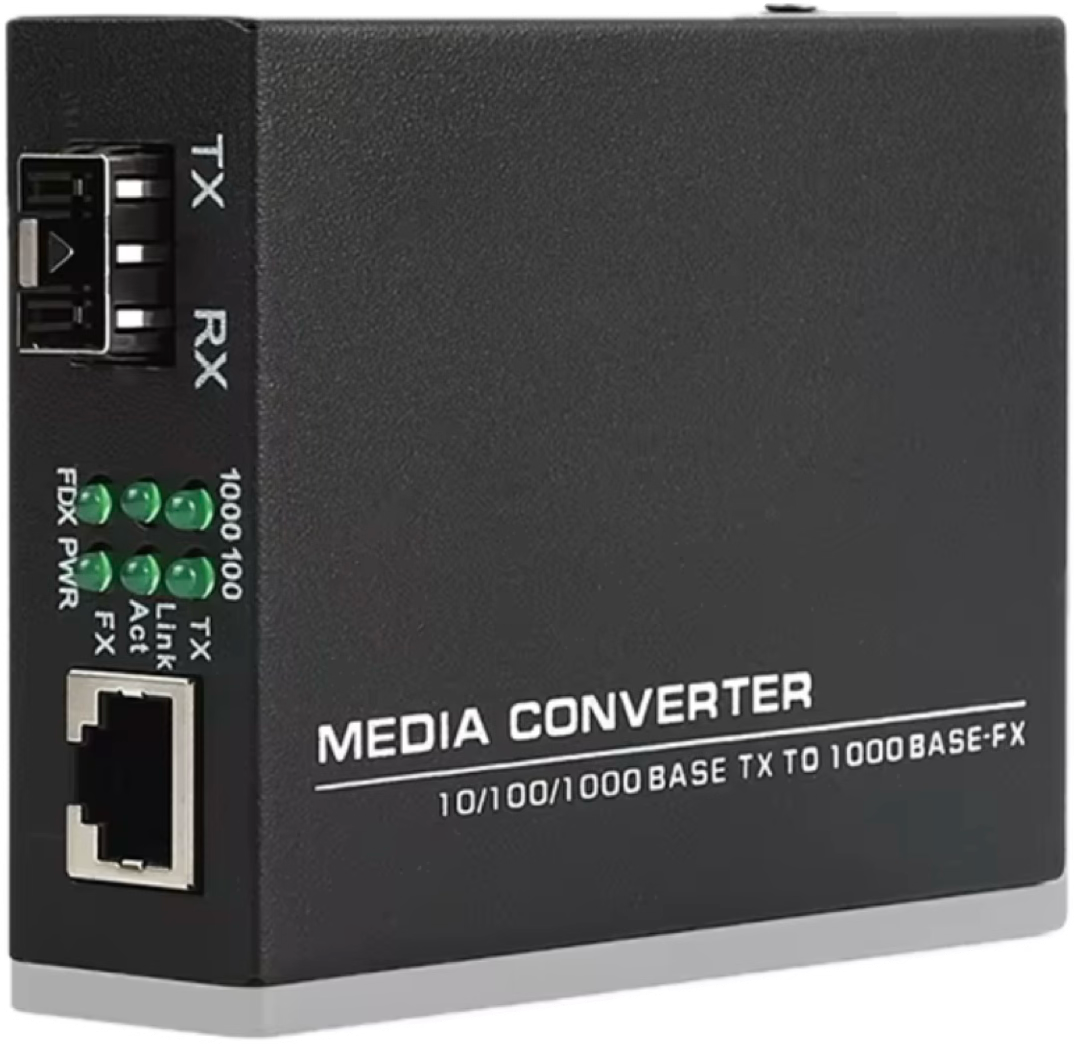

| LED Indicator | PWR: Green Illuminated to indicate unit is operating under normal operation |
| 100M Flashing | Data runing at 100M rate. |
| 1000M Flashing | Data runing at 1000M rate. |
| TX Link/ACT | Green Illuminated indicates receiving link pulses from compliant copper device and flashes when data being sent / received |
| FX Link/ACT | Green Illuminated indicates receiving link pulses from compliant fiber device and flashes when data being sent / received |
| TP/FDX | Lit when TP full-duplex mode is active. Off when TP half-duplex mode is active. Blinks when collision signal is present. |
| Power Supply | DC5V2A |
| Environmental requirements | Operating Temperature: 0°C~+70°C |
| Storage Temperature | -45°C~+95°C |
| Relative Humidity | 0~95% (non-condensing) |
| Transmission Distance | Fiber: Single Mode,20km; UTP: Cat.5/6, 100m |
| Dimension | 11cm*7cm*2.5cm |
