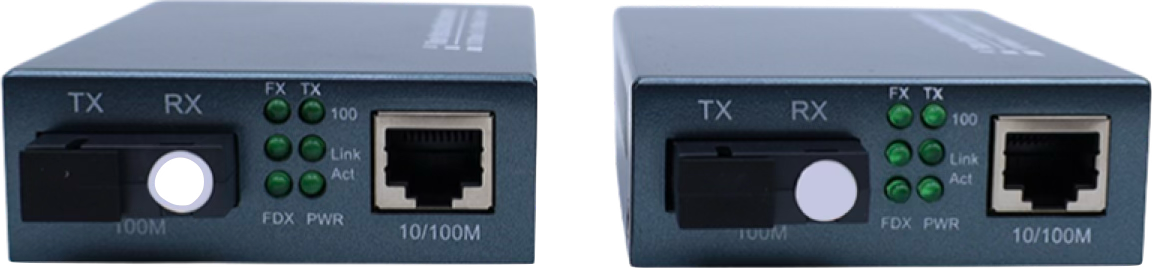

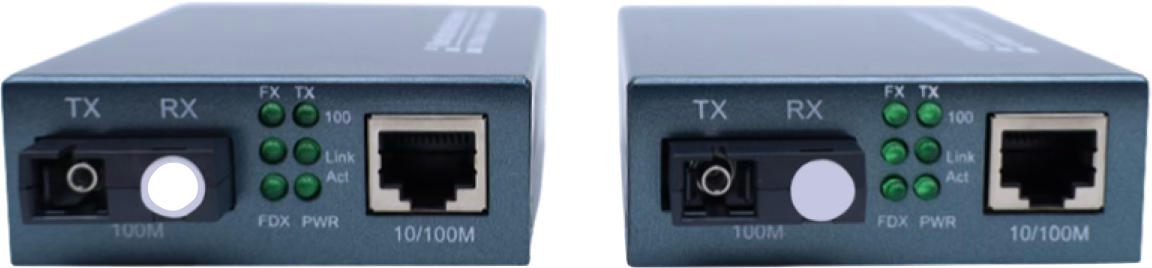

This BIDI (Bi-directional) 2 Wavelength WDM (Wave Division Multiplexing) Fiber Optic Media Converter is designed to fit into the fast-growing and ever advancing optical fiber network deployment environment. This stand-alone converter adapts the emerging WDM technology and can expand copper-based networks up to 25km through a single optical fiber and provide bi-directional data. Users can now double their optical fiber bandwidth and upgrade their existing 100Base-TX or even 10Base-T network easily and more cost effectively.
Media converters is merely a device that can be plugged in and operated, but when connected to the network it must take account of certain factors. In accordance with the media converter port, the end face of the fiber patch cable should be the same. Ensure that wavelengths and speed rates are identical at both ends of the media converter. Be precise as to whether the converter supports full-duplex or half-duplex transmission and make sure to maintain the operating temperature range. Installation of a media converter should be done in a flat, secure location. Make sure that there's enough room for ventilation around the converter.
A&T supply 10/100Base Ethernet Fiber Media Converters, 1000Base Gigabit Fiber Media Converter,SFP Fiber Media Converter, Options in SM dual fiber, multimode dual fiber and SM single fiber.
The hot-swappable design of these converters makes them easy to install and fix for inexperienced users, so that they can communicate with other devices. With high data transmission performance over fiber optic cable, media converters extend communication distance.
Since the use of two fiber media converters in a network is more common, one medium converter must be used for interconnections between copper cable and fiber devices. To connect two copper cable systems, it is often necessary to use a series of fiber media converters to extend the distance.
| Converter Type | Stand-alone Unmanaged |
| Port Type | 1× RJ45 to 1× SFP |
| RJ45 Rate | 10/100/1000Base |
| SFP Rate | 1000Base |
| Dimension (mm) | 26*70*95 |
| Power Supply | External |
| MAC address | 1K |
| UTP cable | Cat5e(≤100m) |
| Frame Buffer Memory | 512Kb RAM |
| Flow control | Full Duplex/Half Duplex |
| Power | AC100V~240V/DC44V~72V/DC8V~28V |
| Relative Humidity | 5%~95% |
| Operating Temperature | 0°C~+50°C |
| Storage Temperature | -20°C~+85°C |
Easy Integration
Bi-Directional
Cost Effective
NWay Auto-Negotiation Support On RJ-45 Port
FCC Class A & CE Approved
Auto-Negotiation Of Duplex (HDX/FDX) On RJ-45 Port
Compliant With IEEE802.3 (10BASE-T), IEEE802.3u (100BASE TX/FX)
