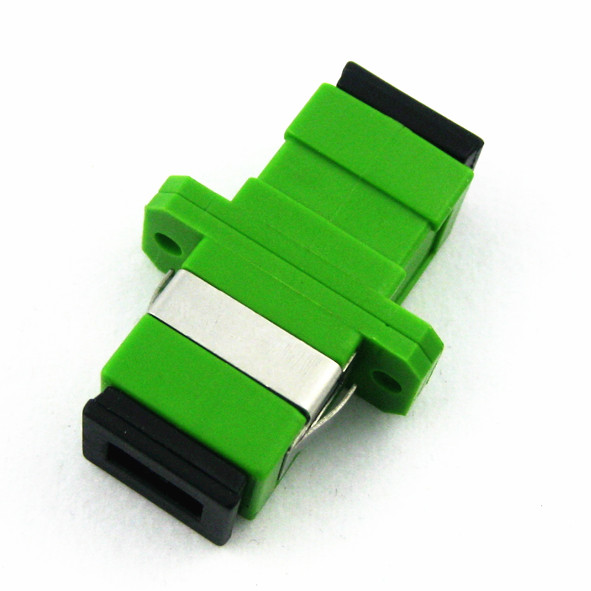

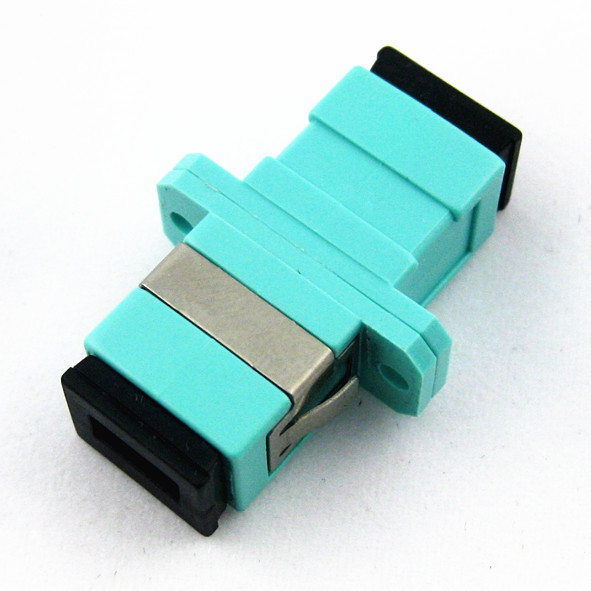

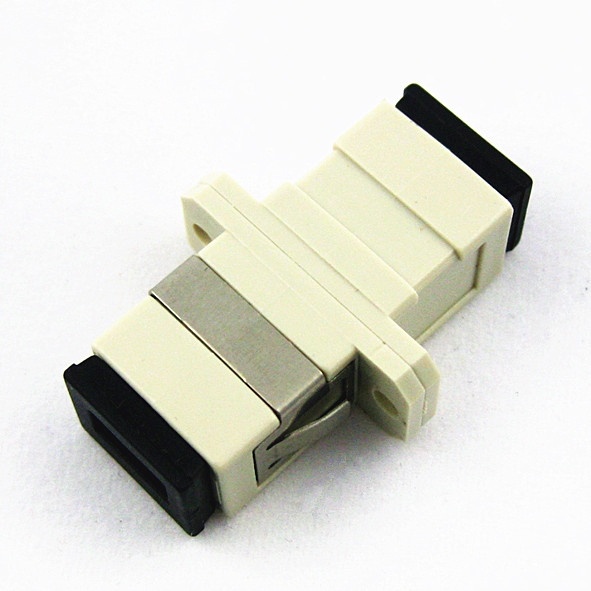

SC Fiber Optic Adapter (SM/MM)

A&T offers various kinds of adaptors, available in traditional FC, SC and ST optic cable connectors and LC, duplex SC, MT-RJ and MU small size optic fiber connectors. All movable optical fiber connectors have passed inspection by the Quality Supervision & Inspection Center of Optical Communication Products (QSICO) under the Ministry of Information Industry (MII).

Features:

All parts are ROHS compliant

Simplex, duplex versions available

Blue, Green, Beige, Aqua, Rose and Purple color are available

Phosphor bronze or Zirconia sleeve

Low insertion loss, ensure highest network connection performance

High precision mechanical dimension

SC/PC Fiber Optic Adapter is specifically designed for fiber optic networks system connection solution. It is with low insertion loss(IL<=0.2dB)(APC) and high return loss (RL>=65dB)(APC).

Item NO.	Test Item	Unit	Standard & Requirement
1	Insertion Loss (dB)	dB	≤0.20dB
2	Repetitiveness (dB)	dB	≤0.10dB
3	Interchangeability (dB)	dB	≤0.20dB
4	Plug times	times	>1000
5	Tensile strength	G	200~600G
6	Operating temperature	Celsius	-25---+85 Celsius
7	Storage temperature	Celsius	-40---+110 Celsius
8	Humidity	Celsius	95%RH (Non-Packaging)

Specifications:

Connector Type	SC
Housing Material	Plastic
Insertion Loss	≤ 0.20dB
Interchangeability	≤ 0.20dB
Repeatability	≤ 0.20dB
Mechanical Durability	1000 Cycles
Operating Temperature	-40℃ ~ +85℃
